Project Description

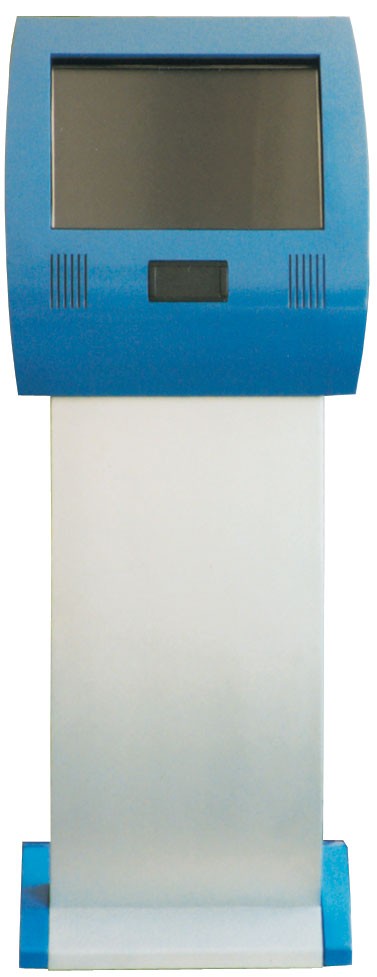

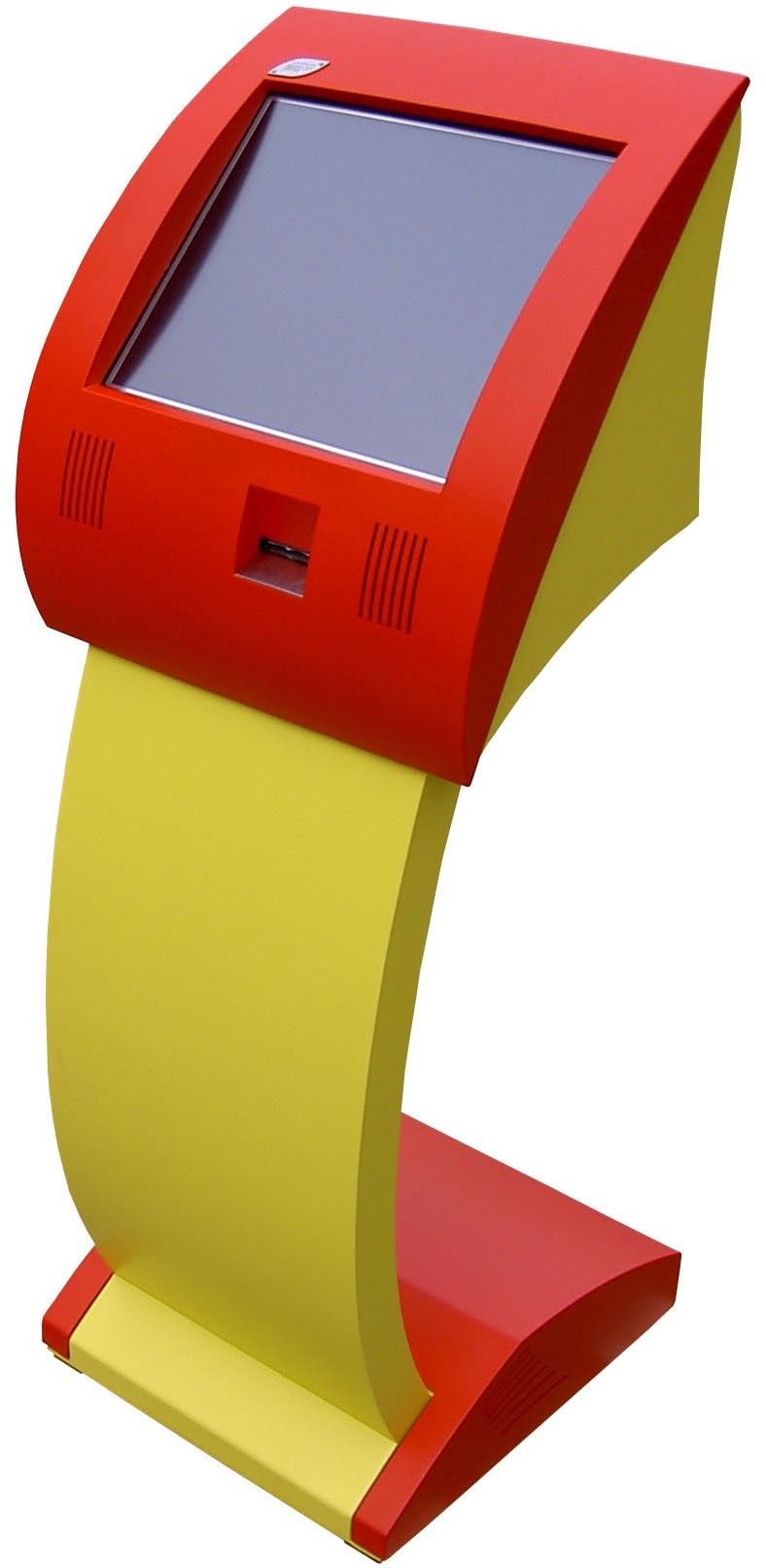

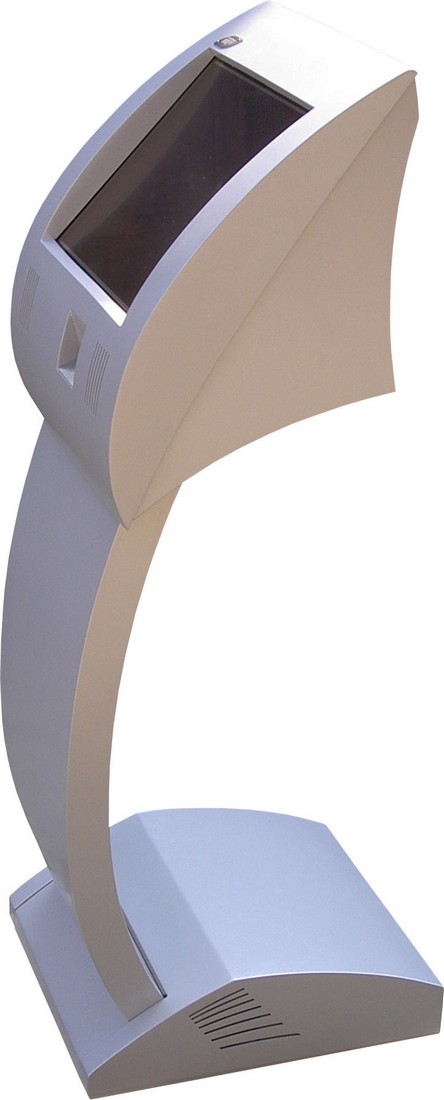

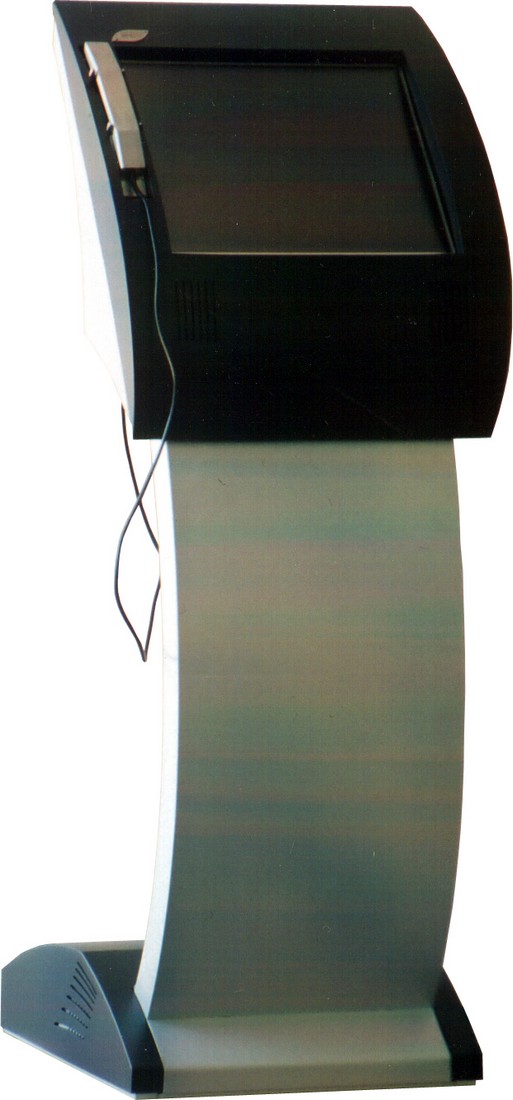

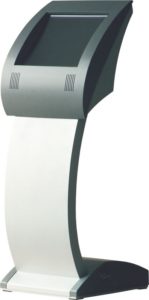

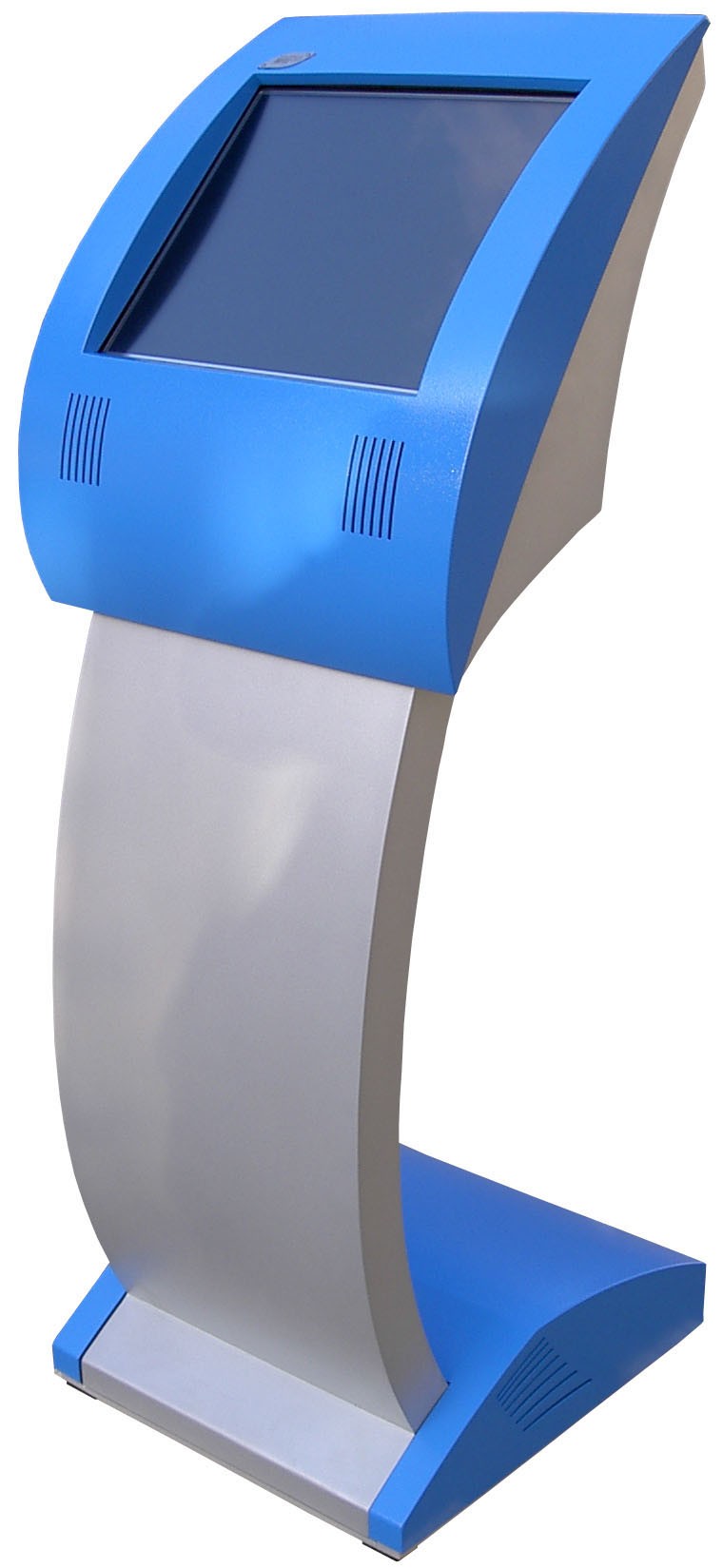

Piccolo

suitable for indoors
dimensions h x d x w (mm): 1223 x 535 x 460
weight: approx. 40 kg
the case is made of sheet steel
access to the computer, monitor and printer through a lockable door
degree of protection IP 20 B, IEC 529: 1989
surface finish and color of your choice (komaxit, car paint)
ready for 15 “or 17” LCD with touch screen
monitor center height (mm): 1060
monitor tilt 43 °
speakers
A PC is mounted on the chassis of the Information Kiosk
Printer:
industrial thermal printer LTP 2442 – 112 mm
industrial thermal printer LTP 2342 – 80 mm

Keyboard:
membrane with Touchpad
stainless steel without pointing device
Mini Cherry
Mini Cherry with trackball

Other:
Chip and magnetic card reader
Barcode scanner
RFID card reader
Alarm system
Industrial telephone receiver
Coin acceptor
Coin safe
